Tiempo de espera :
45daysPuerto de embarque :
Xiamen Portpago :
TT
Applicable Material:Galvanized Steel Coils
Meterial Thickness: 0.4-0.7mm
Inspection Thickness: 0.5mm
Material Strength:345Mpa
The Length of Tolerance: ±1mm（6M）

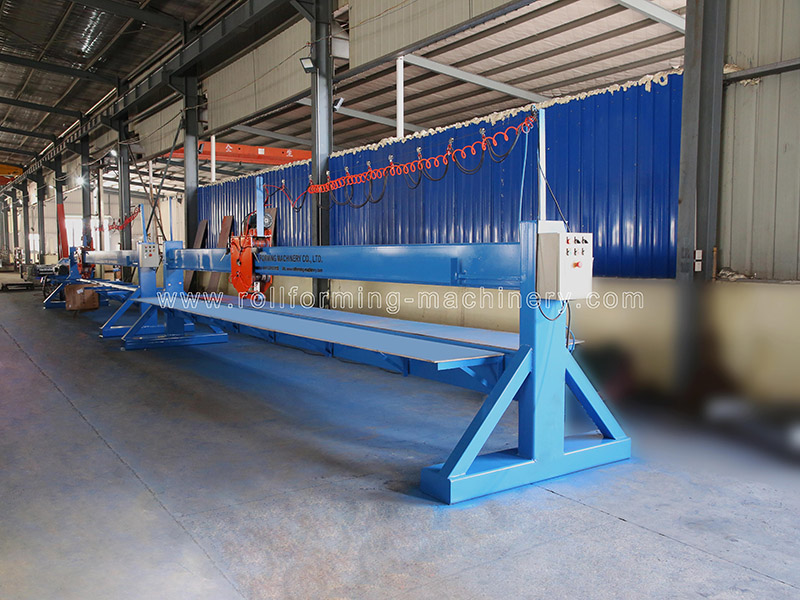

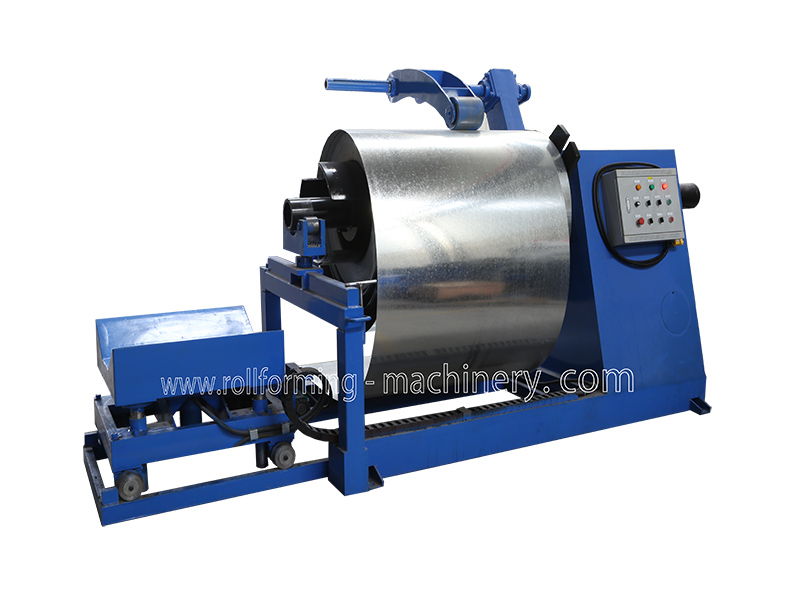

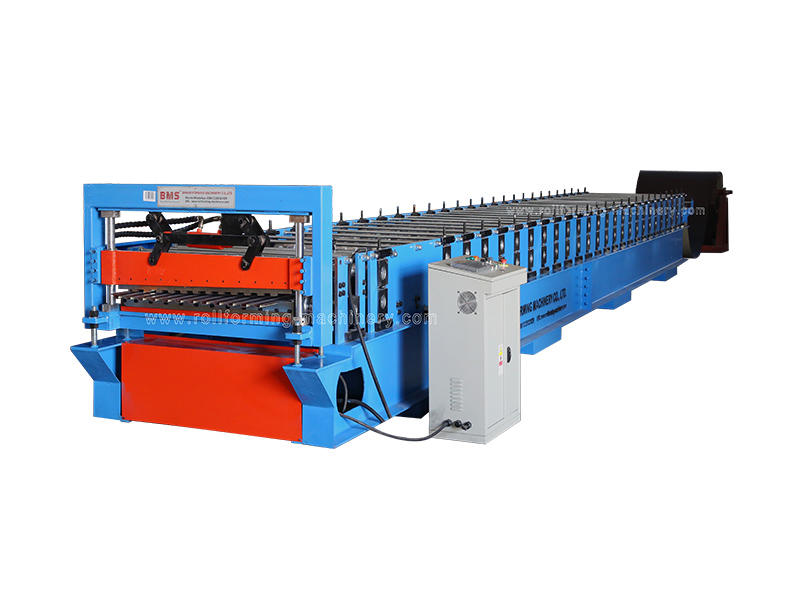

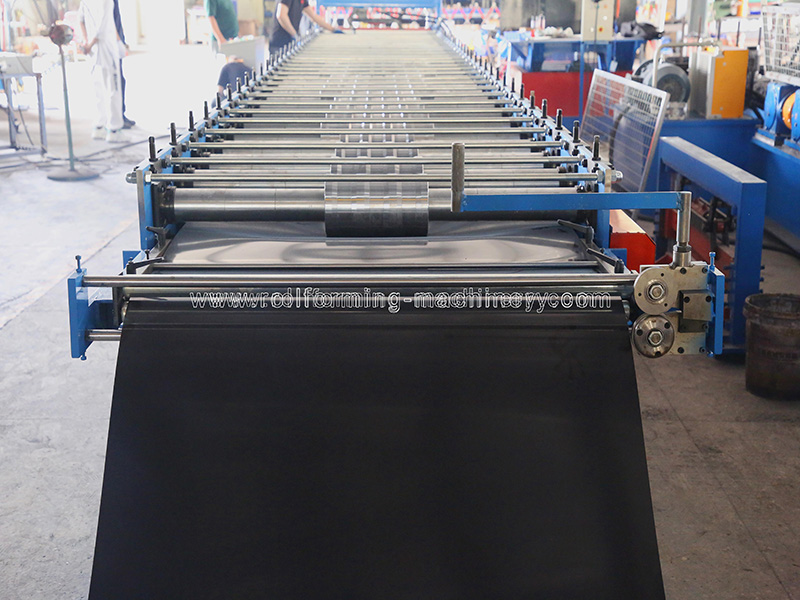

Decoiler → Manual Pre Cutting Device →Feeding Guide Device→ Roll Forming Mill→ Hydraulic Post Cutter→ Exit Rack (3M)→Hydraulic System→PLC Control System
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Shafts manufactured from 45# Steel, Shaft Diameter: φ80
Roller made from 45#, CNC lathes, Hard chrome platingtreatment
Every Machine with Cold Water Device. Gear & Chain drive about 27-step to form
Produced Speed: 15-20m/min (Including punching and cutting time)
All the screw bolts with grade 8.8 (Cheap factories use low grade 4.8) to ensure fix the machine structure tightly and
long life during the machine long time running.

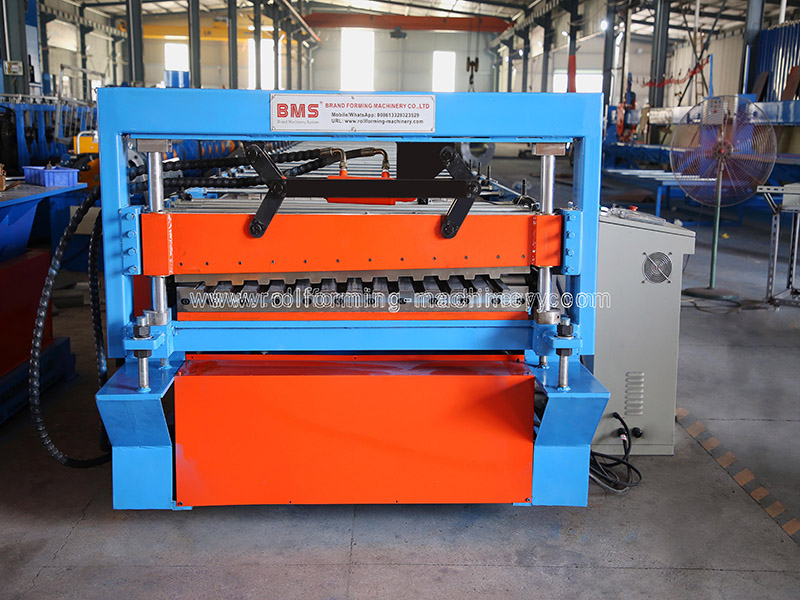

Made by high quality mold steel Cr12MoV with heat treatment
Cutter frame made from high quality steel plate by welding
Hydraulic motor: 4.0KW
Control the quantity and cutting length automatically
Input the production data(Production Batch, Pcs, Length, etc.) on the touch screen,
It can finish the production automatically.

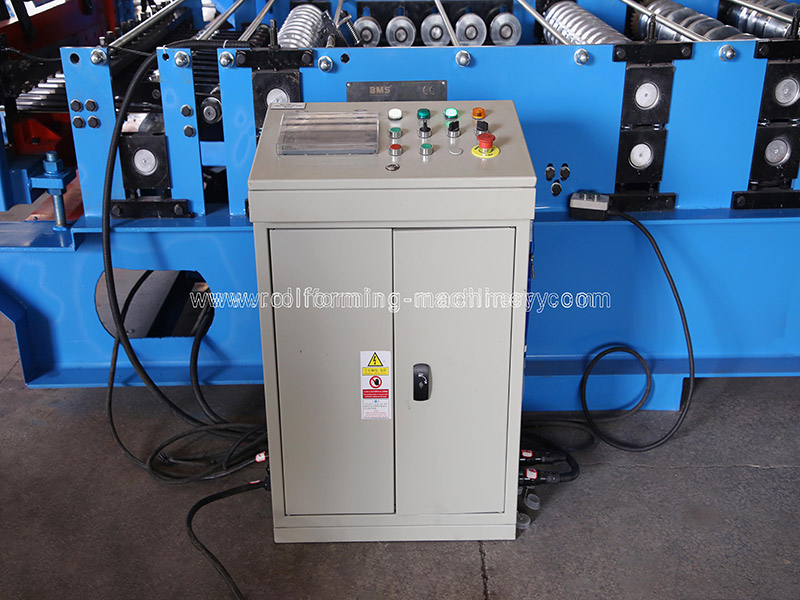

Combined with: PLC, Inverter, Touch Screen, Encoder, Independent Cabinet type etc.
1、The warranty is 24 months after the client receives the machine. Within the 24 months, we will courier the
replacement parts to the client free of charge.
2、We offer technical support for the entire life of our machines.
3、We can sent our technicians to install and train the workers in the clients' factories with extra cost.
Main body of machine is naked and covered by plastic film ( to protect of dust and corrosion), loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
The greatest advantage is one double layer machine can make two design sheets, greatly saved space and the output rate has also been improved.
