Tiempo de espera :
45 daysPuerto de embarque :
Xiamen portpago :
TT
Effective Width: 575mm & 588mm
Effective Width Tolerance: ±0.5mm
The Length Of Tolerance: ±0.5mm
Inspection Thickness: 0.5/0.7mm
Material Yield Strength:Q235

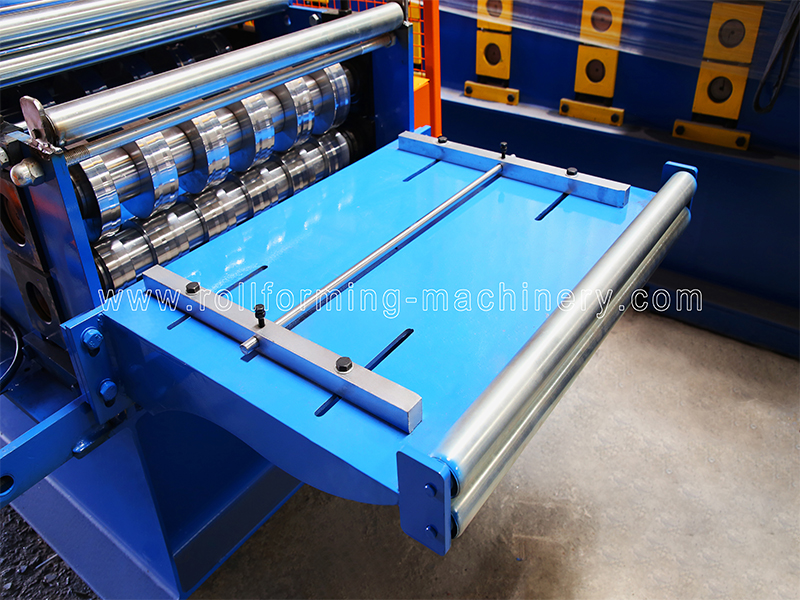

The guiding position can be adjusted for suitable material feeding.
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm;Tie rod:ф22 Galvanized

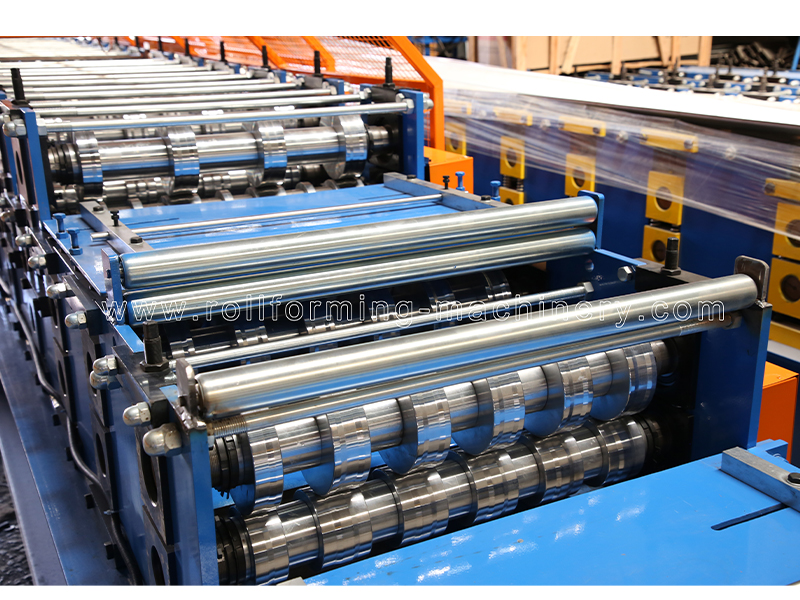

Rollers manufactured from Bearing steel GCr15(=EN31 steel), precision machined, hard Chrome Coated; With thickness 0.5mm, surface with mirror treatment (for longer life and anti-rust); Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating. Diameter=φ75/90mm, precision machined
Gear & chain drive about 22-step to form
Main Motor=7.5KW, Frequency speed control
Speed reducer motor: R series
Chain: Polaroid
All the screw bolts with grade 8.8(cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
Product speed: 20m/min (Including punching and cutting time)

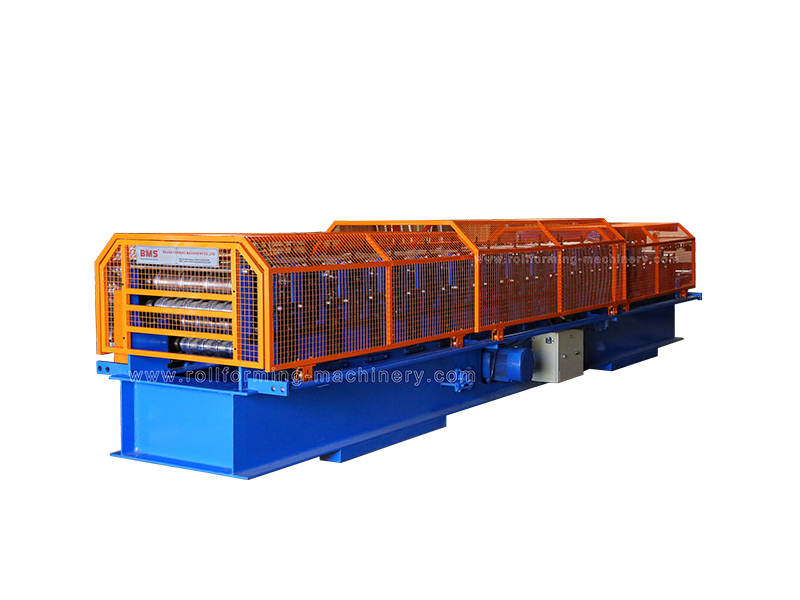

Protective Cover
Control the quantity and cutting length automatically.
Input the production data (production batch, pcs, length, etc.) On the touch screen ,
It can finish the production automatically.
Combined with: PLC, inverter, touch screen, encoder, etc.
1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost
Main body of machine is naked and covered by plastic film (to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
The greatest advantage is one double layer machine can make two design sheets, greatly saved space and the output rate has also been improved.
